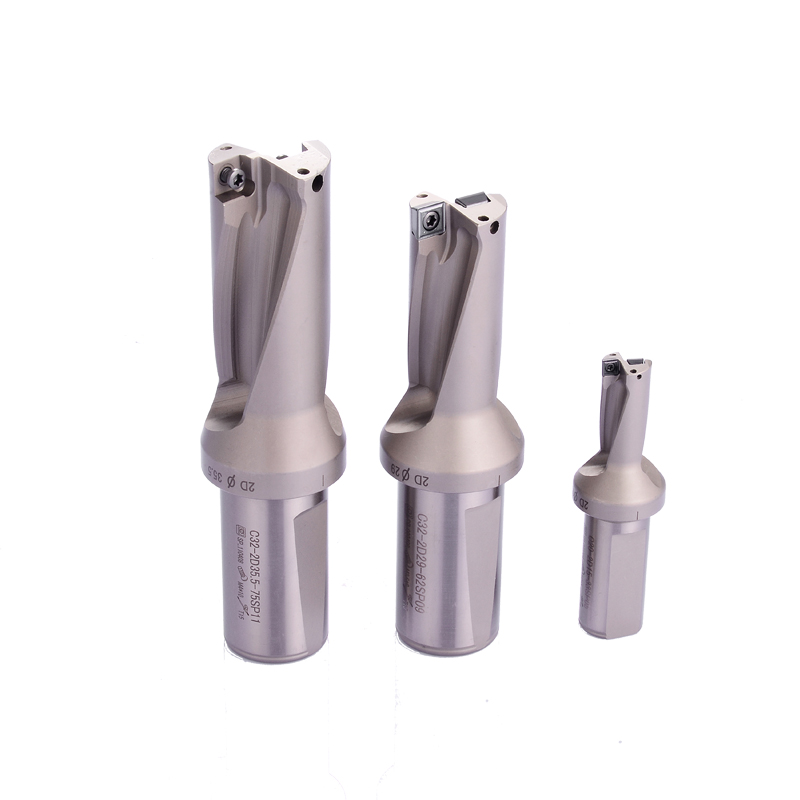

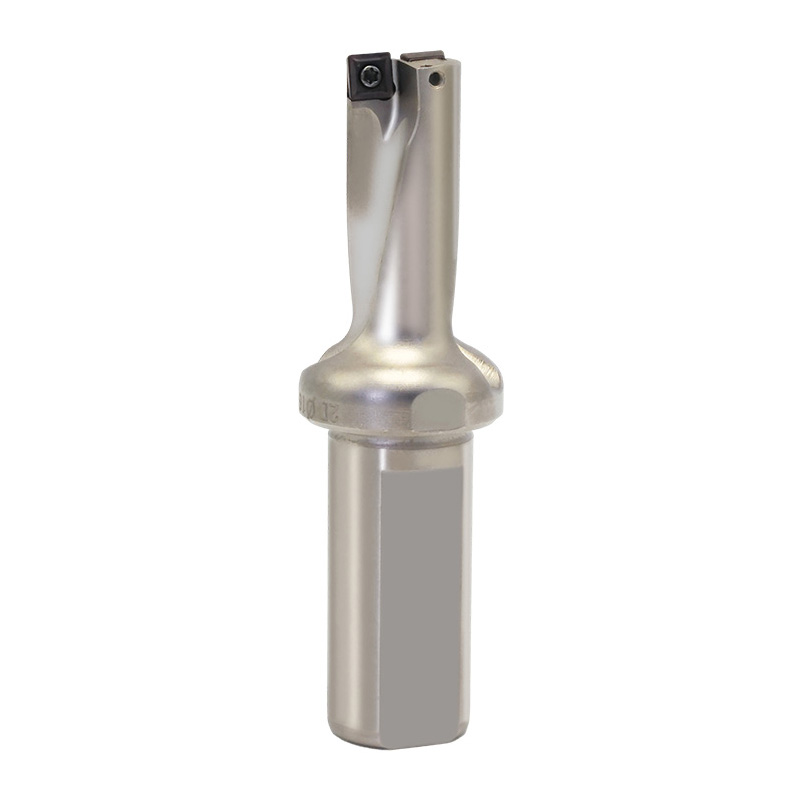

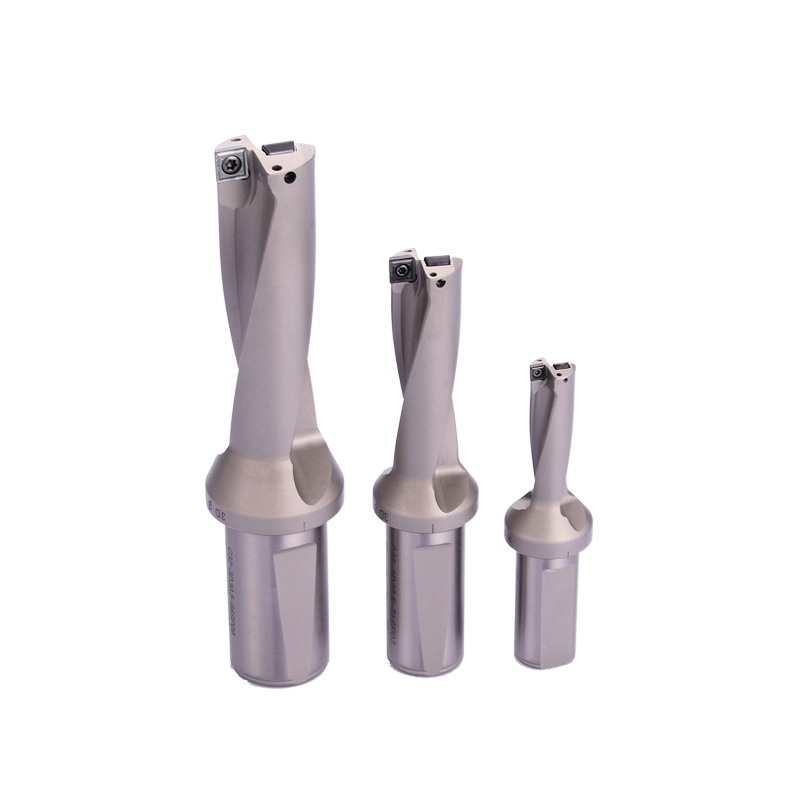

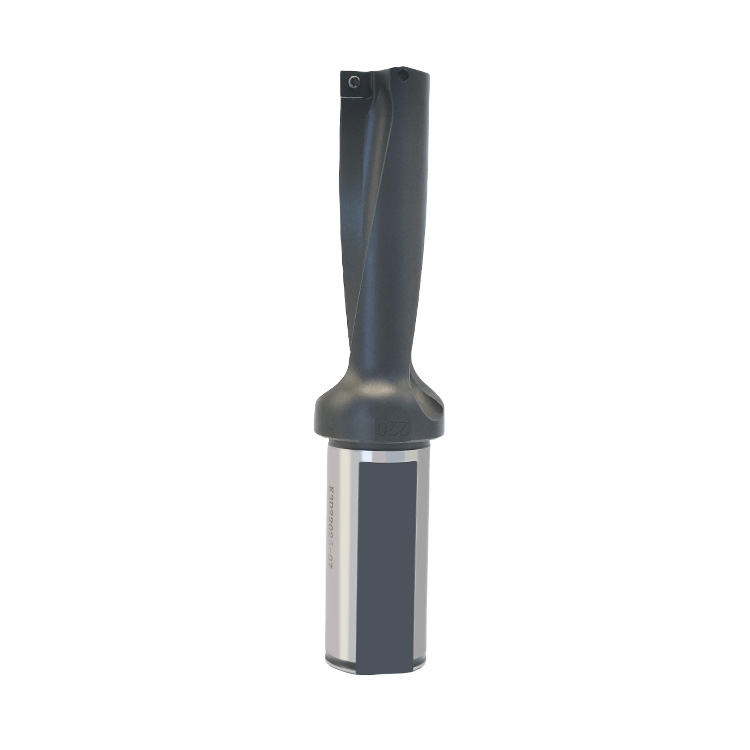

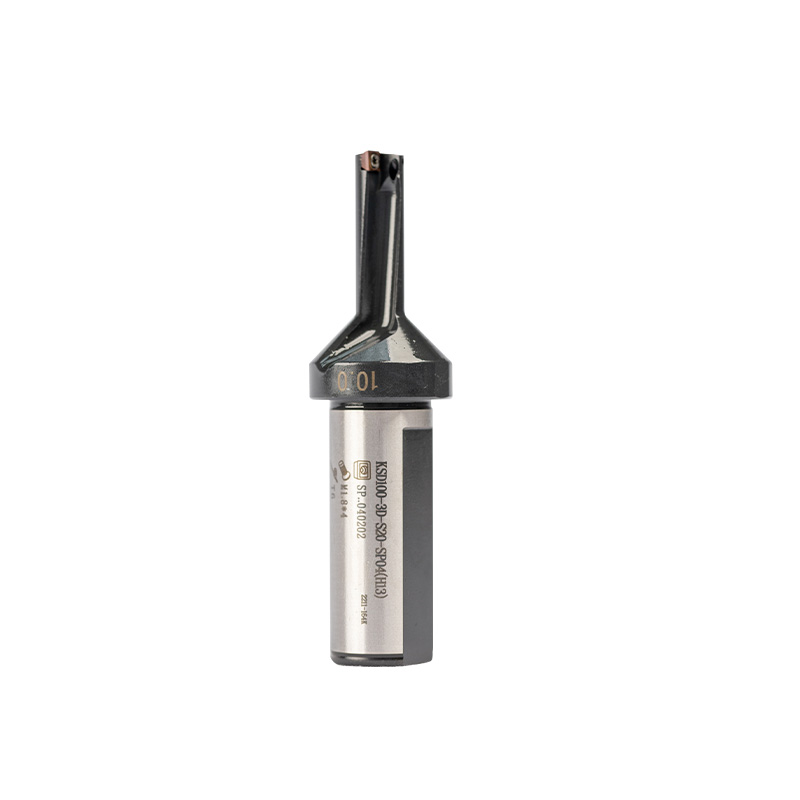

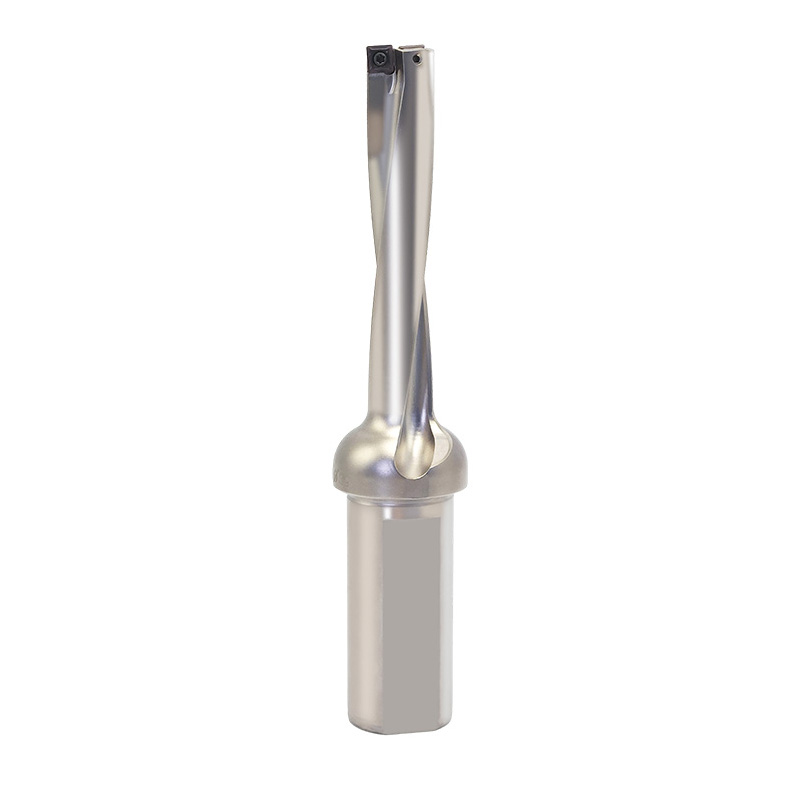

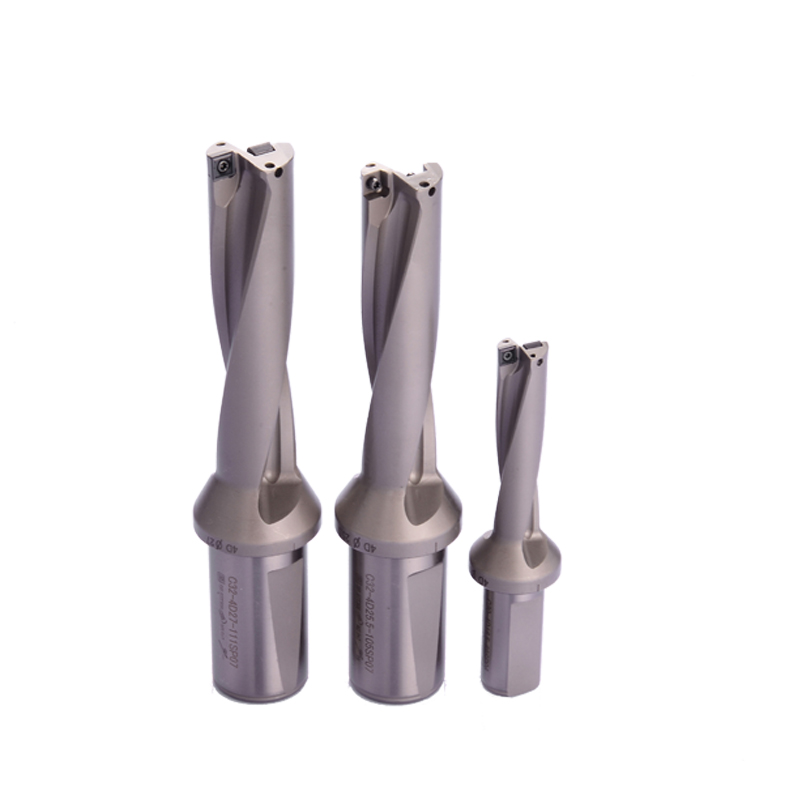

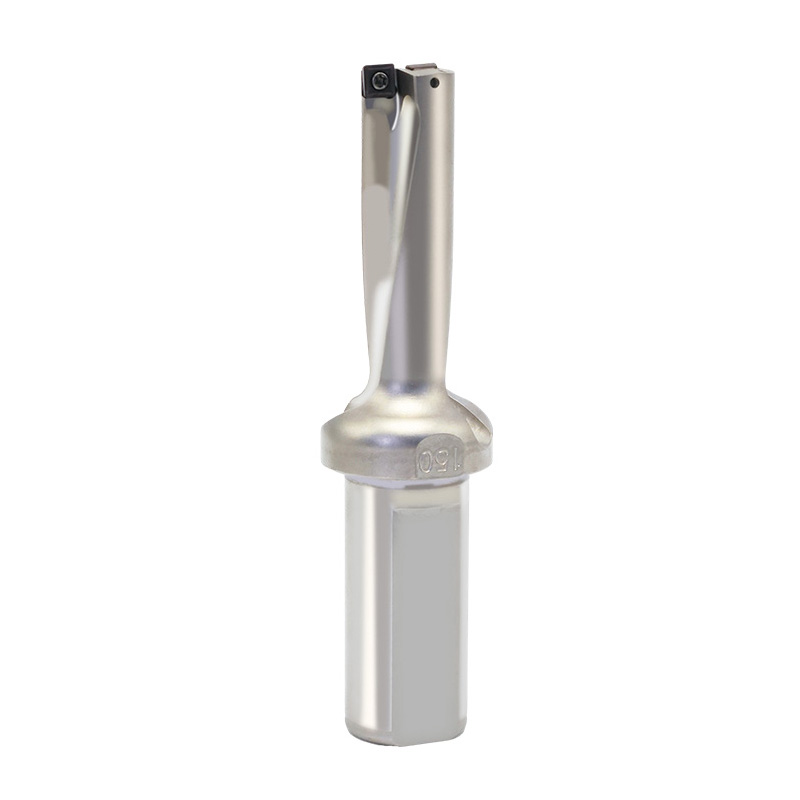

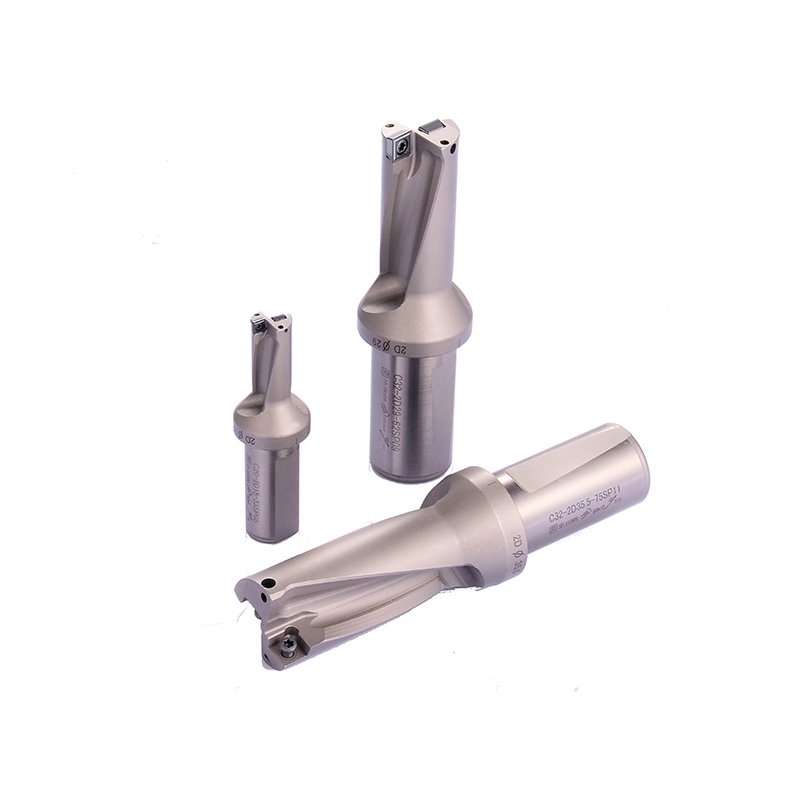

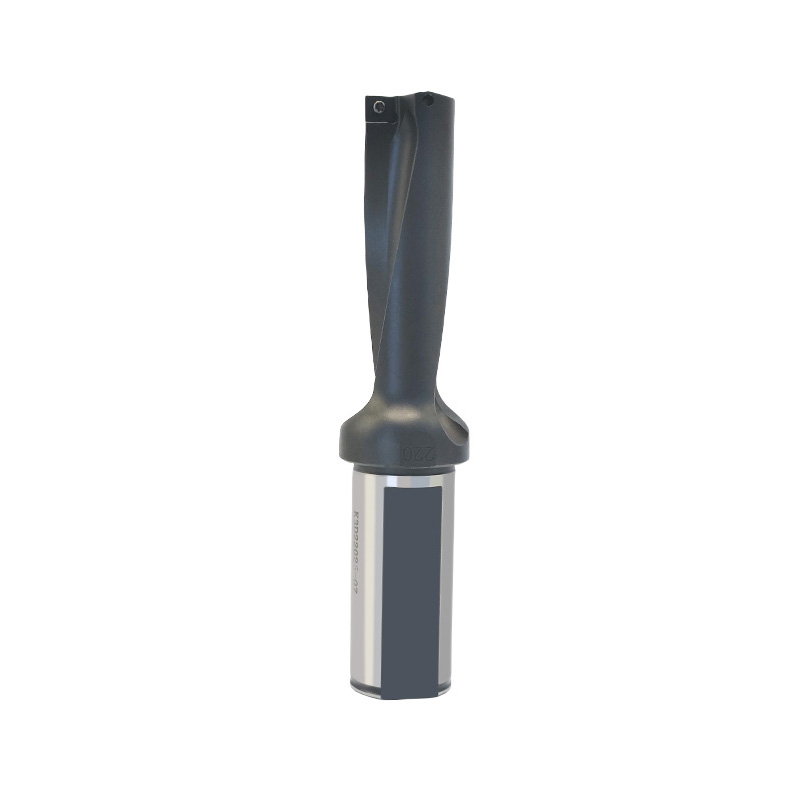

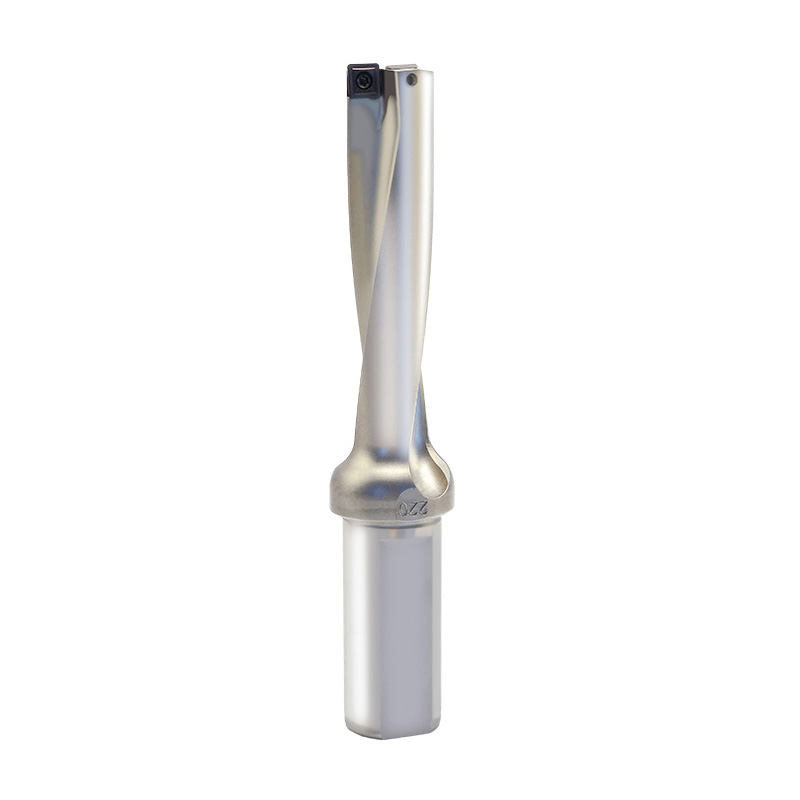

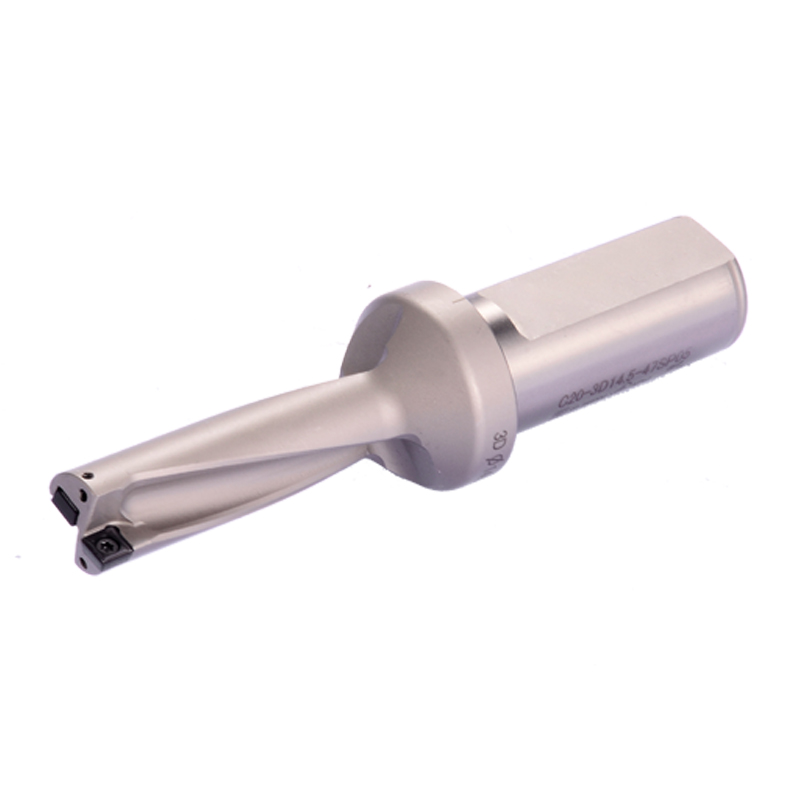

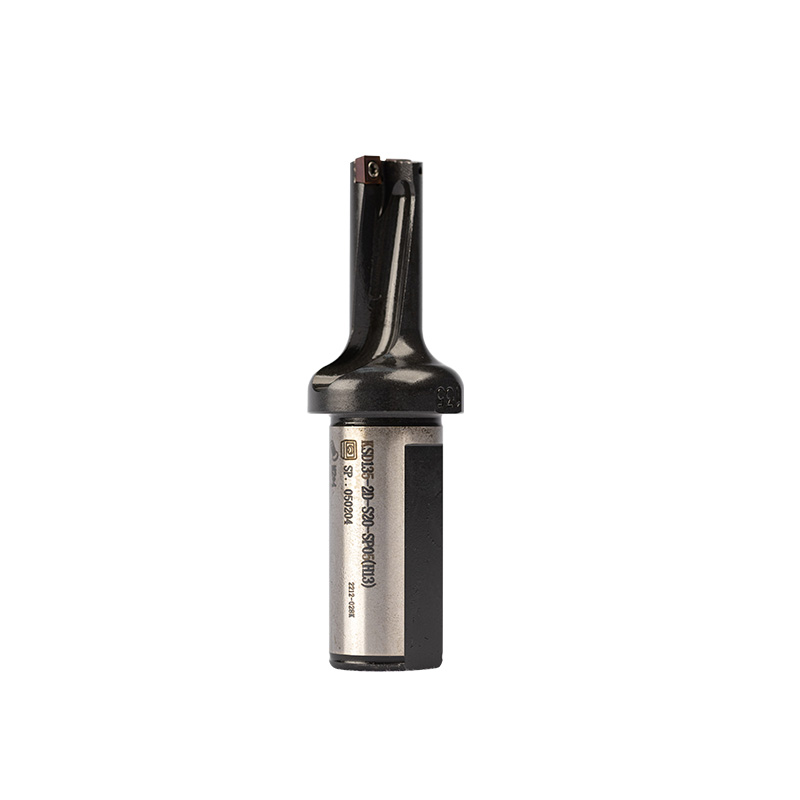

SP U Matkap

Çap Aralığı: 8,5 mm – 40 mm (0,335” – 1,575”)
• Uzunluk Aralığı: 2XD – 5XD
• Yüksek hassasiyetli işleme için H13 çelik ve torna tezgahları ve düşük hassasiyetli işleme için 42CrMo (AISI 4140 ile karşılaştırılabilir) olarak mevcuttur

Özellikler ve faydalar

• SP kesici ucun düz şekli daha keskin bir kesme kenarı ve daha iyi talaş kontrolü sağlar
• Verimli talaş tahliyesi için Y tipi merkez çıkışına sahiptir
• Değiştirilebilir karbür kesici uçlar, P sınıfı çeliğe kadar iş parçası malzemesinde çok yönlülüğe olanak tanır
• Düz delik delme, açılı yüzeyler, yarım silindirik, önceden dökümlü delikler, kesişen delikler, delik işleme, dış tornalama ve kaba döküm, dövme veya kaynaklı giriş yüzeyleri için tasarlanmıştır
• İki soğutma sıvısı kanalı akışın artmasını sağlayarak talaş kaldırma oranlarını, takım ömrünü ve genel üretkenliği artırır.
• Yüksek sertlikteki matkap gövdesi titreşimi ve gürültüyü en aza indirerek olağanüstü delik boyutu doğruluğu ve üstün delik kalitesi sunar.
• Ayrıntılı boyutlar, toleranslar ve uygulanabilir kesici uçlar için kataloğumuzun "İndirme" sekmesi altındaki 1. ve 14. sayfalarına bakın.
• Fiyatlandırma veya özelleştirilmiş çözümlerle ilgili sorularınız için lütfen bizimle iletişime geçin.

Talep Gönder

Ürün Açıklaması

Boyutlar ve Teknik Özellikler

236 mevcut konfigürasyon

Kesme Çapı (mm)	Tutma Çapı (mm)	Toplam Uzunluk (mm)	Kesme Uzunluğu (mm)	Tutma Uzunluğu (mm)	XD Uzunluk	Uygulanabilir Ekleme	Kütle (kg)
8.5	20	83.5	18	44	2	SP..030202	0.2
9	20	84.5	19	44	2	SP..030202	0.2
9.5	20	85.5	20	44	2	SP..030202	0.2
10	20	85.5	22	44	2	SP..04T102	0.2
10.5	20	86.5	22	44	2	SP..04T102	0.2
11	20	87.5	23	44	2	SP..04T102	0.2
11.5	20	88	24	44	2	SP..04T102	0.2
12	20	90	25	44	2	SP..04T102	0.2
12.5	20	93	27	44	2	SP..04T102	0.2
13	20/25	88	29	44/56	2	SP..050204	0.2
13.5	20/25	89	30	44/56	2	SP..050204	0.2
14	20/25	90	31	44/56	2	SP..050204	0.2
14.5	20/25	91	32	44/56	2	SP..050204	0.2
15	20/25	92	33	44/56	2	SP..050204	0.2
15.5	20/25	93	34	44/56	2	SP..050204	0.2
16	20/25	94	35	44/56	2	SP..060204	0.2
16.5	20/25	95	36	44/56	2	SP..060204	0.2
17	20/25	96	37	44/56	2	SP..060204	0.2
17.5	25	109	38	56	2	SP..060204	0.2
18	25	110	39	56	2	SP..060204	0.3
18.5	25	111	40	56	2	SP..060204	0.3
19	25	112	41	56	2	SP..060204	0.3
19.5	25	113	42	56	2	SP..060204	0.3
20	25	114	43	56	2	SP..060204	0.3
20.5	25	115	44	56	2	SP..060204	0.3
21	25	116	45	56	2	SP..060204	0.3
21.5	25	117	46	56	2	SP..060204	0.3
22	25	118	47	56	2	SP..07T308	0.4
22.5	25	119	48	56	2	SP..07T308	0.4
23	25	123	49	56	2	SP..07T308	0.4
23.5	25	124	50	56	2	SP..07T308	0.4
24	25	125	51	56	2	SP..07T308	0.4
24.5	25	126	52	56	2	SP..07T308	0.4
25	25	127	53	56	2	SP..07T308	0.4
25.5	32	134	54	60	2	SP..07T308	0.6
26	32	135	55	60	2	SP..07T308	0.6
26.5	32	136	56	60	2	SP..07T308	0.6
27	32	137	57	60	2	SP..07T308	0.6
27.5	32	138	58	60	2	SP..07T308	0.6
28	32	139	59	60	2	SP..07T308 SP..090408	0.6
28.5	32	140	60	60	2	SP..07T308 SP..090408	0.6
29	32	143	62	60	2	SP..090408	0.7
29.5	32	144	63	60	2	SP..090408	0.7
30	32	148	64	60	2	SP..090408	0.7
30.5	32	149	65	60	2	SP..090408	0.7
31	32	150	66	60	2	SP..090408	0.7
31.5	32	151	67	60	2	SP..090408	0.7
32	32	152	68	60	2	SP..090408	0.8
32.5	32	153	69	60	2	SP..090408	0.8
33	32	154	70	60	2	SP..090408	0.8
33.5	32	155	71	60	2	SP..090408	0.8
34	32	156	72	60	2	SP..090408 SP..110408	0.8
34.5	32	157	73	60	2	SP..090408 SP..110408	0.8
35	32	158	74	60	2	SP..110408	0.8
35.5	32	159	75	60	2	SP..110408	0.8
36	32	160	76	60	2	SP..110408	0.9
36.5	32	161	77	60	2	SP..110408	0.9
37	32	169	79	60	2	SP..110408	0.9
37.5	32	170	80	60	2	SP..110408	0.9
38	32	171	81	60	2	SP..110408	0.9
38.5	32	172	82	60	2	SP..110408	0.9
39	32	173	83	60	2	SP..110408	1
39.5	32	174	84	60	2	SP..110408	1.1
40	40	185	85	70	2	SP..110408	1.1
8.5	20	92.5	27	44	3	SP..030202	0.2
9	20	93.5	28	44	3	SP..030202	0.2
9.5	20	94.5	29	44	3	SP..030202	0.2
10	20	97	31	44	3	SP..04T102	0.2
10.5	20	97.5	33	44	3	SP..04T102	0.2
11	20	98.5	34	44	3	SP..04T102	0.2
11.5	20	100	36	44	3	SP..04T102	0.2
12	20	102	37	44	3	SP..04T102	0.2
12.5	20	105	39	44	3	SP..04T102	0.2
13	20/25	101	42	44/56	3	SP..050204	0.2
13.5	20/25	103	44	44/56	3	SP..050204	0.2
14	20/25	104	45	44/56	3	SP..050204	0.2
14.5	20/25	106	47	44/56	3	SP..050204	0.2
15	20/25	107	48	44/56	3	SP..050204	0.2
15.5	20/25	109	50	44/56	3	SP..050204	0.2
16	20/25	110	51	44/56	3	SP..060204	0.2
16.5	20/25	112	53	44/56	3	SP..060204	0.2
17	20/25	113	54	44/56	3	SP..060204	0.2
17.5	25	127	56	56	3	SP..060204	0.2
18	25	128	57	56	3	SP..060204	0.3
18.5	25	130	59	56	3	SP..060204	0.3
19	25	131	60	56	3	SP..060204	0.3
19.5	25	133	62	56	3	SP..060204	0.3
20	25	134	63	56	3	SP..060204	0.3
20.5	25	136	65	56	3	SP..060204	0.3
21	25	137	66	56	3	SP..060204	0.3
21.5	25	139	68	56	3	SP..060204	0.3
22	25	140	69	56	3	SP..07T308	0.4
22.5	25	142	71	56	3	SP..07T308	0.4
23	25	146	72	56	3	SP..07T308	0.4
23.5	25	148	74	56	3	SP..07T308	0.4
24	25	149	75	56	3	SP..07T308	0.4
24.5	25	151	77	56	3	SP..07T308	0.4
25	25	152	78	56	3	SP..07T308	0.4
25.5	32	160	80	60	3	SP..07T308	0.6
26	32	161	81	60	3	SP..07T308	0.6
26.5	32	163	83	60	3	SP..07T308	0.6
27	32	164	84	60	3	SP..07T308	0.6
27.5	32	166	86	60	3	SP..07T308	0.6
28	32	167	87	60	3	SP..07T308 SP..090408	0.6
28.5	32	169	89	60	3	SP..07T308 SP..090408	0.6
29	32	172	91	60	3	SP..090408	0.7
29.5	32	174	93	60	3	SP..090408	0.7
30	32	178	94	60	3	SP..090408	0.7
30.5	32	180	96	60	3	SP..090408	0.7
31	32	181	97	60	3	SP..090408	0.7
31.5	32	183	99	60	3	SP..090408	0.7
32	32	184	100	60	3	SP..090408	0.8
32.5	32	186	102	60	3	SP..090408	0.8
33	32	187	103	60	3	SP..090408	0.8
33.5	32	189	105	60	3	SP..090408	0.8
34	32	190	106	60	3	SP..090408 SP..110408	0.8
34.5	32	192	108	60	3	SP..090408 SP..110408	0.8
35	32	193	109	60	3	SP..110408	0.8
35.5	32	195	111	60	3	SP..110408	0.8
36	32	196	112	60	3	SP..110408	0.9
36.5	32	198	114	60	3	SP..110408	0.9
37	32	206	116	60	3	SP..110408	0.9
37.5	32	208	118	60	3	SP..110408	0.9
38	32	209	119	60	3	SP..110408	0.9
38.5	32	211	121	60	3	SP..110408	0.9
39	32	212	122	60	3	SP..110408	1
39.5	32	214	124	60	3	SP..110408	1.1
40	40	225	125	70	3	SP..110408	1.1
11.5	20	111	47	44	4	SP..04T102	0.2
12	20	115	50	44	4	SP..04T102	0.2
12.5	20	117	52	44	4	SP..04T102	0.2
13	20/25	114	55	44/56	4	SP..050204	0.2
13.5	20/25	116	57	44/56	4	SP..050204	0.2
14	20/25	118	59	44/56	4	SP..050204	0.2
14.5	20/25	120	61	44/56	4	SP..050204	0.2
15	20/25	122	63	44/56	4	SP..050204	0.2
15.5	20/25	124	65	44/56	4	SP..050204	0.2
16	20/25	126	67	44/56	4	SP..060204	0.2
16.5	20/25	128	69	44/56	4	SP..060204	0.2
17	20/25	130	71	44/56	4	SP..060204	0.2
17.5	25	144	73	56	4	SP..060204	0.2
18	25	146	75	56	4	SP..060204	0.3
18.5	25	148	77	56	4	SP..060204	0.3
19	25	150	79	56	4	SP..060204	0.3
19.5	25	152	81	56	4	SP..060204	0.3
20	25	154	83	56	4	SP..060204	0.3
20.5	25	156	85	56	4	SP..060204	0.3
21	25	158	87	56	4	SP..060204	0.3
21.5	25	160	89	56	4	SP..060204	0.3
22	25	162	91	56	4	SP..07T308	0.4
22.5	25	164	93	56	4	SP..07T308	0.4
23	25	169	95	56	4	SP..07T308	0.4
23.5	25	171	97	56	4	SP..07T308	0.4
24	25	173	99	56	4	SP..07T308	0.4
24.5	25	175	101	56	4	SP..07T308	0.4
25	25	177	103	56	4	SP..07T308	0.4
25.5	25	185	105	56	4	SP..07T308	0.6
26	32	187	107	60	4	SP..07T308	0.6
26.5	32	189	109	60	4	SP..07T308	0.6
27	32	191	111	60	4	SP..07T308	0.6
27.5	32	193	113	60	4	SP..07T308	0.6
28	32	195	115	60	4	SP..07T308 SP..090408	0.6
28.5	32	197	117	60	4	SP..07T308 SP..090408	0.6
29	32	201	120	60	4	SP..090408	0.7
29.5	32	203	122	60	4	SP..090408	0.7
30	32	208	124	60	4	SP..090408	0.7
30.5	32	210	126	60	4	SP..090408	0.7
31	32	212	128	60	4	SP..090408	0.7
31.5	32	214	130	60	4	SP..090408	0.7
32	32	216	132	60	4	SP..090408	0.8
32.5	32	218	134	60	4	SP..090408	0.8
33	32	220	136	60	4	SP..090408	0.8
33.5	32	222	138	60	4	SP..090408	0.8
34	32	224	140	60	4	SP..090408 SP..110408	0.8
34.5	32	226	142	60	4	SP..090408 SP..110408	0.8
35	32	228	144	60	4	SP..110408	0.8
35.5	32	230	146	60	4	SP..110408	0.8
36	32	232	148	60	4	SP..110408	0.9
36.5	32	236	150	60	4	SP..110408	0.9
37	32	243	153	60	4	SP..110408	0.9
37.5	32	245	155	60	4	SP..110408	0.9
38	32	247	157	60	4	SP..110408	0.9
38.5	32	249	159	60	4	SP..110408	0.9
39	32	251	161	60	4	SP..110408	1
39.5	32	253	163	60	4	SP..110408	1.1
40	40	265	165	70	4	SP..110408	1.1
15.5	20/25	140	80	44/56	5	SP..050204	0.3
16	20/25	142	83	44/56	5	SP..060204	0.4
16.5	20/25	145	86	44/56	5	SP..060204	0.4
17	20/25	147	88	44/56	5	SP..060204	0.4
17.5	25	162	91	56	5	SP..060204	0.4
18	25	164	93	56	5	SP..060204	0.5
18.5	25	167	96	56	5	SP..060204	0.5
19	25	169	98	56	5	SP..060204	0.5
19.5	25	172	101	56	5	SP..060204	0.5
20	25	174	103	56	5	SP..060204	0.5
20.5	25	177	106	56	5	SP..060204	0.5
21	25	179	108	56	5	SP..060204	0.5
21.5	25	182	111	56	5	SP..060204	0.5
22	25	184	113	56	5	SP..07T308	0.5
22.5	25	187	116	56	5	SP..07T308	0.5
23	25	192	118	56	5	SP..07T308	0.6
23.5	25	195	121	56	5	SP..07T308	0.6
24	25	197	123	56	5	SP..07T308	0.6
24.5	25	200	126	56	5	SP..07T308	0.8
25	25	202	128	56	5	SP..07T308	0.8
25.5	32	213	131	56	5	SP..07T308	0.8
26	32	216	133	56	5	SP..07T308	0.8
26.5	32	217	136	56	5	SP..07T308	0.8
27	32	218	138	56	5	SP..07T308	0.8
27.5	32	221	141	56	5	SP..07T308	0.8
28	32	223	143	56	5	SP..07T308 SP..090408	0.9
28.5	32	226	146	56	5	SP..07T308 SP..090408	0.9
29	32	230	149	60	5	SP..090408	0.9
29.5	32	233	151	60	5	SP..090408	0.9
30	32	238	154	60	5	SP..090408	1
30.5	32	241	157	60	5	SP..090408	1
31	32	243	159	60	5	SP..090408	1
31.5	32	245	162	60	5	SP..090408	1
32	32	248	164	60	5	SP..090408	1.1
32.5	32	251	167	60	5	SP..090408	1.1
33	32	253	169	60	5	SP..090408	1.1
33.5	32	255	172	60	5	SP..090408	1.1
34	32	258	174	60	5	SP..090408 SP..110408	1.2
34.5	32	261	177	60	5	SP..090408 SP..110408	1.2
35	32	263	179	60	5	SP..110408	1.2
35.5	32	265	182	60	5	SP..110408	1.2
36	32	268	184	60	5	SP..110408	1.3
36.5	32	271	187	60	5	SP..110408	1.3
37	32	280	190	60	5	SP..110408	1.3
37.5	32	283	193	60	5	SP..110408	1.3
38	32	285	195	60	5	SP..110408	1.4
38.5	32	288	198	60	5	SP..110408	1.4
39	32	290	200	60	5	SP..110408	1.9
39.5	32	293	203	60	5	SP..110408	1.9
40	40	305	205	70	5	SP..110408	1.9
